I am Sri Nivasam, your future home. I am a gated neighbourhood spread across 2 acres of land and I can accomodate 190 families. I have been designed keeping you in mind, I will assure maximum peace, serenity and abundance of light and air with an 8 feet corridor with 9 elevators and also a service lift. The club house also equips everything you need...
of land
Flats
corridor
Space
common areas
Apartment Units
* Wooden flooring is shown for illustrative purposes only and not included in the final output by default
Flats# 21, 23, 27 & 29
Flats# 22 & 28
Flats# 24, 26, 30 & 32
Flats# 25, & 31
Flats# 12, 13, 14 & 15
Flats# 2, 3, 4 & 5
Flats# 11
Flats# 7, 8, 9 & 10
Flats# 6
Flats# 16, 18 & 20
Flats# 1, 17 & 19

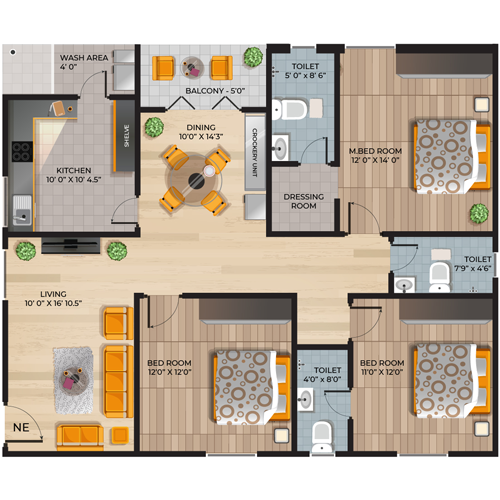

Typical floor plans with room dimensions
* Wooden flooring is shown for illustrative purposes only and not included in the final output by default
Flats# 21, 23, 27 & 29
Flats# 22 & 28
Flats# 24, 26, 30 & 32
Flats# 25, & 31
Flats# 12, 13, 14 & 15
Flats# 2, 3, 4 & 5
Flats# 11
Flats# 7, 8, 9 & 10
Flats# 6
Flats# 16, 18 & 20
Flats# 1, 17 & 19
Construction Updates
 |
Multiple tot-lots |
 |
Badminton court |
 |
Nets for cricket practice |
 |
Half basketball court |
 |
Jogging track |
 |
Benches |
 |
Illuminated internal pathways |
 |
Multipurpose hall |
 |
Terrace swimming pool |
 |
Airconditioned Gymnasium |
 |
Yoga / Aerobics room |
 |
Multiple Guest rooms |
 |
Indoor games |
 |
Solar Fencing |
 |
Intercom |
 |
CCTV Surveillance |
 |
Solar power for common areas |
 |
8 feet wide corridors |
 |
Gray & Black water treatment plant |
 |
Entrance lounge & Guest lounge |
 |
Service lift |
 |
Electric Cars & bikes charging points |
 |
100% vaastu compliance |
|
9 Elevators |
 |
Sewage treatment plant |
 |
Generator backup for common areas |
 |
Inverter wiring for each house |
 |
Rain water sump |
 |
Excellent ventilation |
RCC framed structure to withstand wind and seismic loads Zone II.
Machine made CC blocks in cement mortar; external walls (towards outer walls of the building) of 8’’ thick and internal walls of 4’’ thick.
Rich cement mortar plaster for both external and internal walls & ceiling. Premium emulsion paint with luppum finish for both internal walls and ceiling. 2 coats of premium brand antifungal paint with Textured finish on elevation and plain finish on other external surfaces. Synthetic enamel paint for MS railings.
Hall, Kitchen, Dining & Bedrooms: Double charged premium quality Vitrified tiles;
Toilets& Utility: Designer tiles;
Corridor& Balconies: Matt finished premium quality Tiles.
Tractor Emulsion with Altek or Luppam on Internal walls. Birla wall Care Putty or Texture Paint on front side of external façade as per the elevation and primer with two coats of exterior paint on other three external sides.
Granite platform with stainless steel sink. Provision of Water IN & Out Points, electrical points for exhaust fan, electrical appliances & Water Purifier. Remaining appurtenances in Owners Scope.
Passenger lifts as per NBC norms with collapsible shutters.
Main Door: Engineered wood Frame; Best quality Flush door shutter with teak veneer aesthetically finished with melamine spray polish and designer hardware of reputed make.
Internal Doors: Engineered wood frame and best quality flush door shutters with standard hardware.
Windows: UPVC Glazed sliding with provision of mosquito mesh and M.S.Grills.
Railings: Staircase & Balcony will be provided with Stainless Steel.
Concealed conduiting with copper fire retardant low smoke (FRLS) wiring with modular switches conforming to BIS. Standard number of electrical points in all rooms of Anchor / Panasonic/ Legrand make. Power outlets for air conditioners in all bedrooms. Power outlets for Geysers in all bathrooms. Power plug for cooking range chimney / microwave / mixer grinder and plug point for RO unit in kitchen. Plug point for refrigerator. 3 Phase power supply for each apartment unit with Invertor provision for Lights and Fans.
CPVC/ UPVC piping conforming to BIS. All sanitary and plumbing fixtures of premium quality.
Toilets: All Toilets consists of EWC with flush valve, Hot and cold diverter point with shower, Plumbing provision for Geyser in all toilets.
100% Power backup through Generator for common areas, Club-house, lifts, water pumps and security checkpoints.
Intercom / network provision. CCTVs at required locations. Telephone, TV, Internet provision in living and all bedrooms.
